Cervo DP (Double Pole) Switches and MCB Enclosures are designed to provide heavy-duty power control and protection for your most demanding appliances. Whether it's for air conditioners, water heaters, or main power distribution, our 32A switches and robust enclosures offer superior safety through high-grade insulation and reliable switching mechanisms. Engineered for both surface and concealed mounting, these products ensure that your high-wattage equipment remains safely controlled.
Heavy Duty Power Control Series
Explore our range of industrial-grade DP switches and protective enclosures, built for maximum reliability and long-term durability.
32A Double Pole Switches

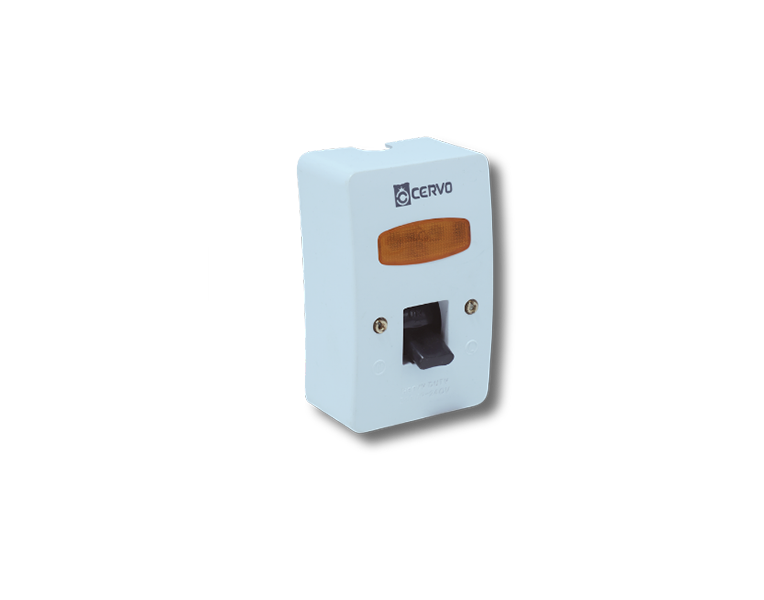

32A DP Switch (Heavy Duty)
- Code: C229
- Surface Mounting Design
- Heavy Duty Internal Contacts
- Power Indicator LED
32A DP Switch (Lite)
- Code: C230
- Economic Surface Series
- Robust Switching Mechanism
- Sleek White Finish

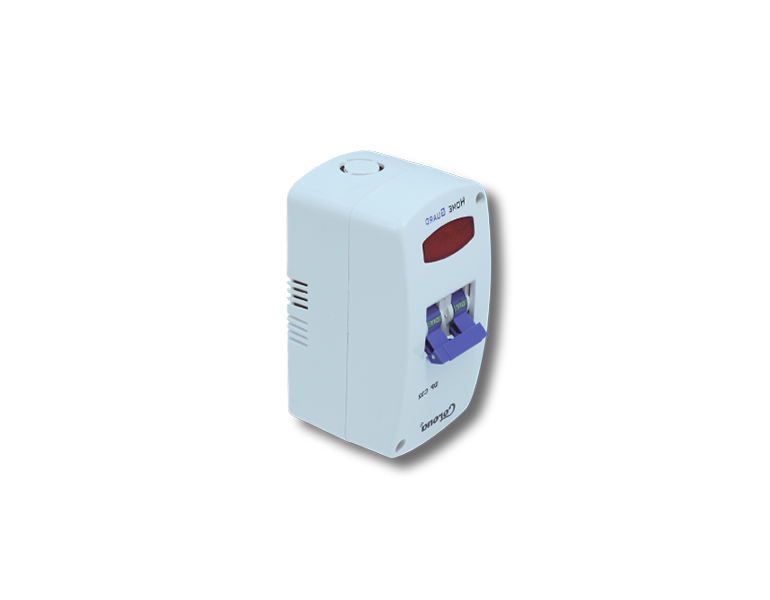

Mini MCB DP Enclosure
- Code: C232
- Range: 6A to 32A Support
- Durable Casing
- Secure DIN Rail Mounting
Applications & installation
Designed for high-load appliances that require dedicated and safe isolation.
- Air Conditioner (AC) Power Control
- Electric Geyser & Water Heater Isolation
- Main Power Entry Points
- Heavy Machinery & Pump Controls
- Kitchen Cooking Ranges & Ovens
- MCB Protection for Individual Circuits
Product Features
Built to handle the heat and load of modern electrical environments.
High Load Capacity:
Specifically rated for 32A to handle inductive loads without terminal burnout.
Arc Protection:
Internal design minimizes sparking and arching during high-current switching.
Flame Retardant:
Manufactured using high-quality FR grade polymers for ultimate fire safety.
Technical Specifications
| Specification | Details |
|---|---|
| Current Rating | 32 Ampere (Double Pole) |
| Voltage Support | 220V - 250V AC |
| Material | FR Grade Polycarbonate |
| Contact Material | Silver Inlay Solid Brass |
| Enclosure Range | Supports 6A to 32A MCBs |
| Mounting Type | Surface / Flush Wall Mounting |
Why choose Cervo DP switches & enclosures
Providing robust double-pole switches and enclosures built for heavy-duty isolation and reliable circuit safety.
Silver Inlay Contacts
Equipped with pure silver-plated copper contacts for maximum electrical conductivity and minimum arc wear.
Flame-Retardant Polycarbonate
Constructed from top-grade UL94 V-0 flame-retardant polymers to prevent fire hazards under heavy load conditions.
Integrated DIN Rail
Enclosures feature standard steel DIN rails for easy and secure snap-on mounting of miniature circuit breakers.
